Hollow Fiber Ultrafiltration Membrane

Brand Name : MR

Model Number : MR-8060

Place of Origin : China

MOQ : 500 pcs

Supply Ability : 100000 pcs/month

Delivery Time : 15 days

Packaging Details : 1 pcs in single carton

Material : PVDF,PP/PAN/PVDF/PS

Application : Commerce,Water Disinfection,Waste water/sewage treatment plant,Industry

Type : Ultrafiltration,Flat Sheet Memebrane

Usage : entertainment places,hotel,Water Purification,Seawater Ionizer Desalination,community

After-sales service provided : Online support

Certification : CE,ISO9001,ISO

Working temperature : 5~45℃

Housing material : UPVC/organic glass

Contact Now

Hollow Fiber Ultrafiltration Membrane

UF Introduction
Ultrafiltration (UF) is a separation principle for screening, with pressure as the driving force to realize mechanical separation membrane separation process, namely under certain pressure, when the mixed solution of large molecules or a small molecule solute through the membrane surface, solvent (e.g., inorganic salt) and small molecule solutes through the membrane, and the solute molecules due to mechanical filtration membrane as concentrate intercept, So as to achieve the purpose of purification, separation and concentration.

NaCI rate of removal %	40-60	80-95
MgSO4 rate of removal%	>96	>96
NaCI average water (GPDm³/h)	12000(45.5)	7500(28.4)
MgSO4 average water (GPDm³/h)	10000(37.5)	9000(33.9)
Effective membrane area ft2(m2)	400(37.2)	400(37.2)
Operating pressure psi(Mpa)	70psi(0.5mpa)	70psi(0.5mpa)
Test temperature	25℃	25℃
Test liquid concentration(NaCI or MgSO4)	2000ppm	2000ppm
The test liquid PH	7.5	7.5
Recovery rate(%)	15	15
Max.operating pressure psi(Mpa)	600(4.14)	600(4.14)
Max.inflow temperature(℃)	45	45
Max.inflow SDI	5	5
Max.water flow GPM(m3/h)	75(17)	75(17)
Free chlorine concentration	<0.1	<0.1
Continuous running water pH range	3--10	3--10
Chemical cleaning water pH range	2--12	2--12
Max.single membrane element pressure drop psi(Mpa)	15(0.1)	15(0.1)

1. Effective bacterial destruction
2. Effective depyrogenation (endotoxin reduction)
3. Efficient destruction of organic contamination
4. Reduced occurence of chemical by-product formation
5. Minimal residue of chemical interference
6. Economical and easy-to-use cleaning age

Hollow Fiber Ultrafiltration Membrane

package

Why choose us:

- Best quality with reasonable price
- Offer OEM services for all customers
- Fast ,accurate quotes and flexible payment
- Strong technical surpport,20 more year experience
- Membrane high mechanical strength, stable water quality, operation flux is big, long service life

Product Tags:

ultrafiltration module

mr membrane

China Hollow Fiber Ultrafiltration Membrane wholesale

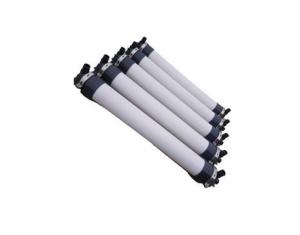

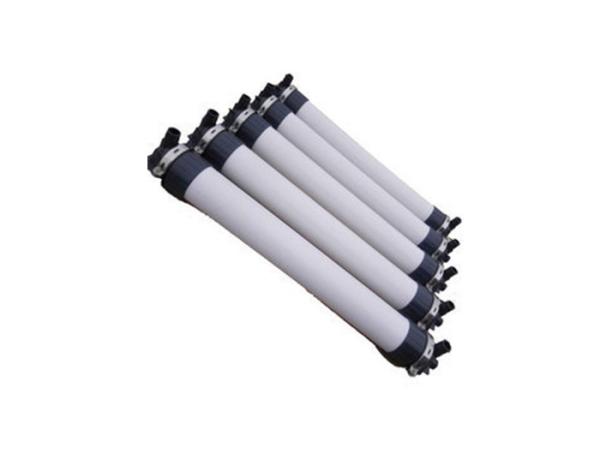

Hollow Fiber Ultrafiltration Membrane Images
